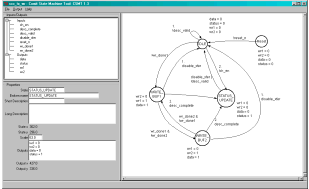

Fiesta® CSMT is a graphical editor for finite state machines. This tool saves time by allowing rapid and easy definition of state machines and automatically generating Verilog® code and documentation. The tool provides a Graphical User Interface (GUI) that lets users add states, transitions, expressions, input and output signals to a state machine. The GUI provides easy drawing of state machine diagrams.
- Intuitive Graphical User Interface speeds adoption
- Saves time by automatically generating Verilog code, diagrams and documentation
- Speeds up design realization time by automatically detecting errors
- Minimizes overhead by integrating directly with version control / release management tools
- Saves design debug time by automatically embedding entity descriptions in tool outputs
- Easy to use Graphical User Interface
- Automatically generates Verilog HDL code
- Automatically generates diagrams in Postscript and Window Metafile formats
- Direct integration into version control/release management tools like cvs and make
- Built in Design Rule Check
- Automatically embeds entity description as comments in Verilog code
- Automatically includes entity description in documentation
Inputs
- Via GUI
Outputs
Solaris (sparc) 2.7 / 2.8 (7/8) Redhat Linux 7.1 / 7.2 Windows NT4.0 / 98 / 2000 / XP
